SMC-7 Seires

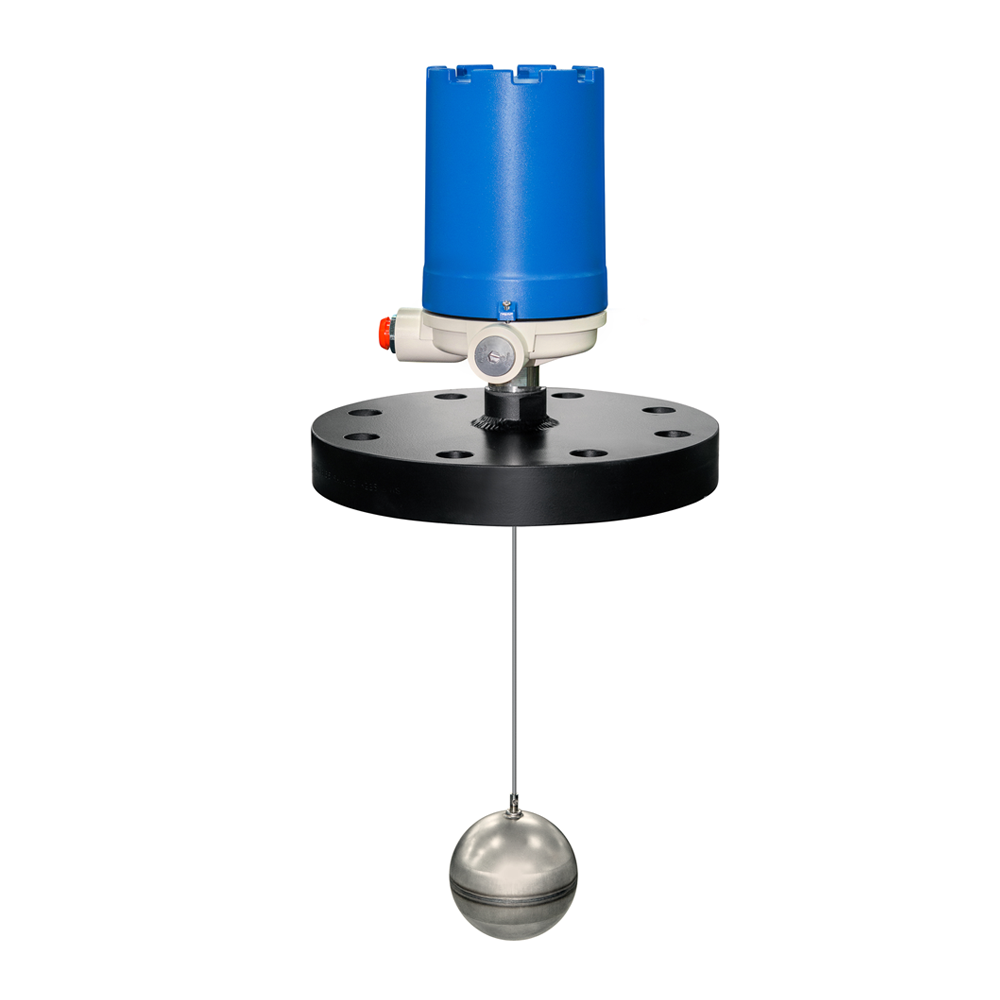

Vertical Float Type Level Switch SMC-7 Seires

  • Payment
    L/C(sight) , T/T
  • MOQ
    1 ea
  • Supply Ability
    999,999 ea per One-Time
  • Supply Details
    Customization Sample Order

    Negotiable, Depends on size, Depends on specification

  • Country of sale
    World Wide, Asia, Middle East, Europe, Americas
  • Catalogue Video Clip
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    SMC-7 Seires
    Model SMC-7 Seires
  • origin
    Republic of Korea
  • Size(Capacity)
    300 mm ~ 5000 mm
  • Function
    Level measurement
  • Material
    Carbon Steel, 316SS, Aluminum
  • Color
    Depends on size, specification
  • Dimensions
    Depends on size, specification
  • Features
    accuracy


PRODUCT DESCRIPTION

Vertical Float Type Level Switch SMC-7 Seires
Product descriptions
The electric contact switch operates as per the principle of magnetism, and the electric contact switch is normally "relay-off " position because of tension spring.
There is magnetic steel on the edge of Float's Rod, and this magnetic steel sticks to magnet installed inside the housing when the level goes up.
At this time, electric contact switch turns on because the switch designed to "relay-on" when the magnet sticks to magnetic steel of the Float s Rod. When the level goes down , on the contrary, the Float goes down and accordingly the magnetic steel on the Float s edge goes down.
Therefore, the magnetic steel detaches from the magnet and the switch is returning to "relay-off" position due to tension spring.
Product Specifications
1. Can be used for vessel under high pressure and temperature
2. Designed to ASME B31.1
3. Weather proof
4. Explosion-proof & Frame-proof
5. Unique and reliable: Snap acting switch mechanism
6. Vibration resistant - eliminates fake trips by special spring
7. A wide variety of chambers can be used.
8. Multiple switches can be assembled in a unit for economical purpose.
9. Weld procedures approved to KEPIC MQ and ASME IX
10. Material certification to ASTM, ASME, JIS, KS Standards
11. Qualified to IEEE 323-2003, and IEEE344-2004
12. Applicable to hermetical seal type snap action switch
13. Warranty Period : 1year
[Technical Specifications (SMC-73, SMC-75)]
Least Specific Gravity of Process 0.6
Snap Acting Switch Assembly Switching Type Snap Acting Switch, Dry Contact Type
Contact(Output) 1SPDT, 2SPDT, 1DPDT
Accuracy ±1mm
Maximum Applicable Temperature 400℃
Body Material 304SS
Terminal Material Pure Ceramic
Chamber   Made According to ASME B31.1, KEPIC MGE.
Material  CS(Std.), 304SS, 316SS (or 316LSS), etc.
Float Material  316LSS(Std.), Monel
Float Specific Gravity Minimum 0.4
Size      1) SMC-73 : OD 90mm,
    2) SMC-76 : OD 110mm
Maximum Temperature of Process Liquid  550℃
Maximum Pressure of Process     1) SMC-73 : 46Bar
    2) SMC-75 : 70Bar
Hydrostatic Test Pressure     1) SMC-73 : 70Bar
    2) SMC-75 : 105Bar
[Technical Specifications (SMC-71)]
Least Specific Gravity of Process 0.6
Snap Acting Switch Assembly Switching Type Snap Acting Switch
Dry Contact Type Contact(Output) 1SPDT, 1DPDT
Accuracy ±1mm
Body Material 304SS
Terminal Material Pure Ceramic
Chamber   Made According to ASME B31.1, KEPIC MGE.
Material  CS(Std.), 316SS, etc.
Float Material  316LSS(Std.)
Float Specific Gravity Minimum 0.4
Size      OD 90mm
Maximum Temperature 250℃
